BUOY 800
NAVIGATION BUOY
High-performance marine navigation buoy designed for maximum stability, visibility and durability in harsh environments.
Product Overview
Buoy 800 is a single float marine navigation buoy manufactured from virgin, UV-stabilized inter-compounded polyethylene. It is designed with a robust structure and ballast system to ensure high stability in rough sea conditions. The buoy is foam filled for unsinkability and features integrated lifting, mooring eyes and ballast system for easy handling and installation.
UV Stabilized
High UV resistance for long-term performance.
Rotational Moulded
Seamless one-piece polyethylene construction.
Foam Filled
Polyurethane foam for maximum buoyancy.
SS316 Hardware
Corrosion resistant stainless steel parts.
Integrated Lifting
Lifting eyes and handles for safe handling.
IALA Compliant
Colors and topmark as per IALA standards.
Internal Ballast
Enhanced stability in rough conditions.
Optional Radar Reflector
Aluminum 5083/5086 marine grade.

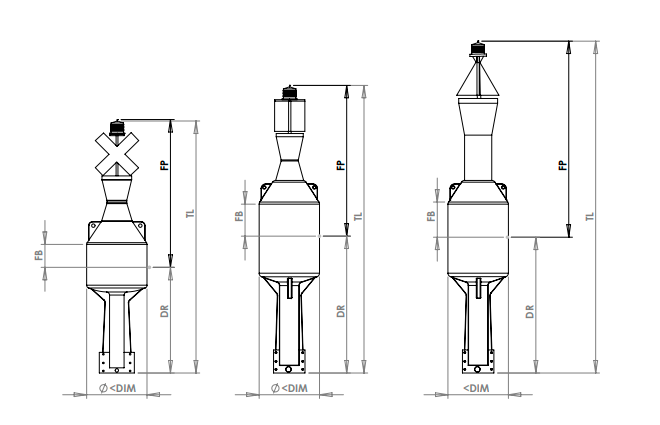

Technical Specifications
| Technical Data | Type A 3440/800 |
Type B 3800/800 |
Type C 4420/800 |
|---|---|---|---|
| Diameter (mm) | 800 | 800 | 800 |
| Focal Plane (mm) | 1956 | 1995 | 2595 |
| Draught (mm) | 1398 | 1811 | 1811 |
| Freeboard (mm) | 300 | 424 | 451 |
| Total Length (mm) | 3440 | 3800 | 4420 |
* Specifications are subject to change without prior notice.
Key Information
- Structure, Lifting and Mooring Points: SS316 stainless steel.
- Float and Mast: UV-stabilized polyethylene (virgin).
- Foam: Filled with polyurethane foam.
- Colors Integration: Integrated during molding, IALA compliant.
- Ballast: Internal ballast weight.
- Topmark: Rigid PE, as per IALA standard.
- Radar Reflector (optional): Aluminum 5083/5086 marine grade.
- Warranty: 5 years.
APPLICATIONS
Ports & Harbors
Offshore
Platforms
Navigation
Channels
Marine Safety
TECHNICAL DATA
| Model | A Data 3440/800 | Type B 3800/800 | Type C 4420/800 |
|---|---|---|---|
|
Diameter (mm) |
800 |
800 |
800 |
|
Focal Plane (mm) |
1956 |
1995 |
2595 |
|
Draught (mm) |
1398 |
1811 |
1811 |
|
Freeboard (mm) |
300 |
424 |
451 |
|
Total Length (mm) |
3440 |
3800 |
4420 |
Durable Construction
High Buoyancy & Stability
Corrosion Resistant
Low Maintenance
IALA Compliant
Key Information
Structure, Lifting and Mooring Points
SS316 stainless steel.
Float and Mast
UV-stabilized polyethylene (virgin).
Foam
Filled with polyurethane foam.
Colors Integration
Integrated during molding, IALA compliant.
Ballast
Internal ballast weight.
Topmark
Rigid PE, as per IALA standard.
Radar Reflector (optional)
Aluminum 5083/5086 marine grade.
Warranty
5 years.

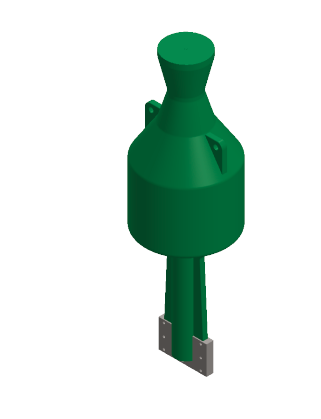

3D MODEL

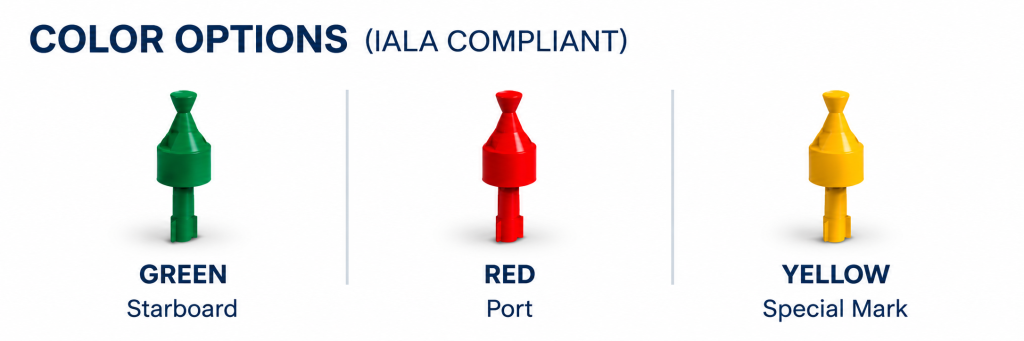

GREEN
Starboard
Used for marking the right side of a channel when entering from seaward.
RED
Port
Used for marking the left side of a channel when entering from seaward.
YELLOW
Special Mark
Used for special marks, safe water marks and caution areas.
Technical Data Sheet
Detailed specifications and performance data.
Installation Guide
Installation, handling and maintenance instructions.
IALA Compliance
IALA compliance certificate and color specifications.
Official Documents
All documents are official and suitable for project submission and approval.
Always Updated
We ensure all documents are up to date with the latest standards and specifications.
